Industrial Rare Earth Magnets For Power Tool Assembly

Star United Industry Co.,LTD

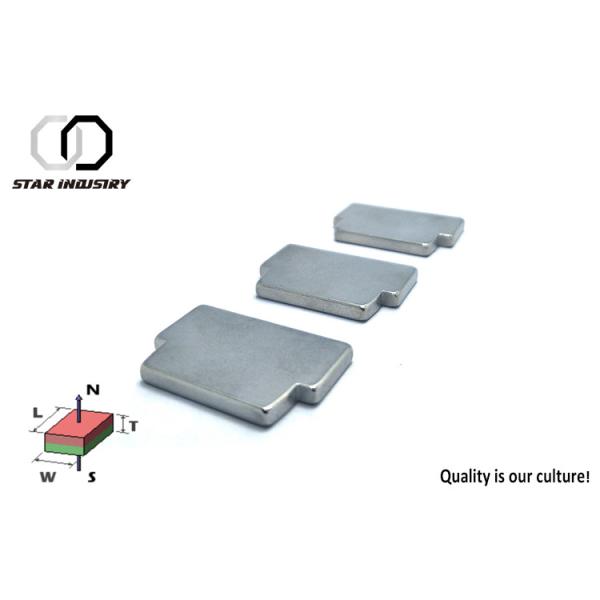

Industrial Rare Earth Magnets For Power Tool Assembly

  • 1
  • 2
  • 3

Brand Name : STAR

Model Number : R19-N52

Certification : MSDS, Patent certificate, ISO9001, RoHS, Quality Certificate

Place of Origin : China

MOQ : 1

Price : $0.01~$498.00

Payment Terms : T/T, Western Union, MoneyGram, Paypal, L/C, WECHAT

Supply Ability : 1500 tons per month

Delivery Time : 7~30 days as customer's project and quantity

Packaging Details : Non-magnetism packing with Iron and foam protection, Export carton and pallet

Name : Rare Earth Magnets

Material : Power Tool Assembly

Rare element : Pr,Nd,Pm,Sm,Co,Eu,Gd,Tb,Dy,La,Ce etc

Surface finish : Zn, Ni, Epoxy, Silver, Gold, rubber coated, Phosphatsing, Parylene, Custom color

Custom support : 12 Years OEM and ODM Available for custom

Tech support : Our R & D engineers is always for you

Contact Now

Industrial Rare Earth Magnets For Power Tool Assembly

special rare earth magnets wholesale , buy rare earth magnets for power tool assembly

Using In-Process Controls

A master block from the die is ground on all faces. This block is then magnetized and characterized. From this we can determine the deviation of the magnetic axis to the physical axis. Engineering determines what angles have to be ground on each face to bring the physical axis and magnetic axis into alignment. The block is demagnetized and Production grinds the blocks to achieve the objectives of Engineering

Company production advantages:

1. Design and Tool assistance:

More than 12 years professional factory production line for OEM and ODM magnet solutions, thousands of molding tools available for your customized magnet design, you think it, we make it for you. Below is our workshop for your reference.

2. Measuring of magnet:

Quality is our culture, all our products is coming with good quality finished and Demagnetization curve as well as we have special team work for after sales services.

3. Testing for customer’s magnet:

We know most of customers have not much professional equipment for their magnet testing, But do not worry, we can free of charge help you test if it is true.

When you buy magnets with a very lower price, or you think something is not good when use the magnets, you can ask us for help, we will do the professional testing and let you know what you get.

4. Fast and safety delivery

We have worked with some experienced Express courier and Sea shipper more than 10 years, we can guarantee every process of your magnet order from materials, design, production, testing to delivery, we really do all care.

5. Suggestions and feedback

We love customers and love to hear from you whether it's feedback or questions about our Quality, Service, Market, etc, we will continue improving our performance and together we are stronger.

Grade Remanece Coercive Force (Hcb) Intrinsic
Coercivity
Max Energy Curie Coefficient TW
Tempreture
Br Hcj (BH)max TC
T KGs KA/m KOe KA/m Koe KJ/m3 MGOe
N33 1.13-1.18 11.3-11.8 ≥836 ≥10.5 ≥955 ≥12 247-263 31-33 310 ≤80
N35 1.18-1.23 11.8-12.3 ≥868 ≥10.9 ≥955 ≥12 263-287 33-36 310 ≤80
N38 1.22-1.28 12.2-12.8 ≥899 ≥11.3 ≥955 ≥12 287-310 36-39 310 ≤80
N40 1.26-1.31 12.6-13.1 ≥923 ≥11.6 ≥955 ≥12 302-326 38-41 310 ≤80
N42 1.28-1.34 12.8-13.4 ≥923 ≥11.6 ≥955 ≥12 318-342 40-43 310 ≤80
N45 1.33-1.38 13.3-13.8 ≥923 ≥11.6 ≥955 ≥12 342-366 43-46 310 ≤80
N48 1.38-1.42 13.8-14.2 ≥923 ≥11.6 ≥955 ≥12 358-390 45-48 310 ≤80
N50 1.40-1.45 14.0-14.5 ≥836 ≥10.5 ≥876 ≥11 382-406 48-51 310 ≤80
N52 1.43-1.48 14.3-14.8 ≥796 ≥10.0 ≥876 ≥11 398-422 50-53 310 ≤80
N35M 1.17-1.22 11.7-12.2 ≥868 ≥10.9 ≥1114 ≥14 263-287 33-36 320 ≤100
N38M 1.22-1.25 12.2-12.5 ≥899 ≥11.3 ≥1114 ≥14 287-310 36-39 320 ≤100
N40M 1.25-1.28 12.5-12.8 ≥923 ≥11.6 ≥1114 ≥14 302-326 38-41 320 ≤100
N42M 1.28-1.32 12.8-13.2 ≥955 ≥12.0 ≥1114 ≥14 318-342 40-43 320 ≤100
N45M 1.32-1.38 13.2-13.8 ≥995 ≥12.5 ≥1114 ≥14 342-366 43-46 320 ≤100
N48M 1.36-1.43 13.6-14.3 ≥1027 ≥12.9 ≥1114 ≥14 366-390 46-49 320 ≤100
N50M 1.40-1.45 14.0-14.5 ≥1033 ≥13.0 ≥1114 ≥14 382-406 48-51 320 ≤100
N33H 1.14-1.19 11.4-11.9 ≥836 ≥10.5 ≥1353 ≥17 247-270 31-34 330 ≤120
N35H 1.17-1.22 11.7-12.2 ≥868 ≥10.9 ≥1353 ≥17 263-287 33-36 330 ≤120
N38H 1.22-1.25 12.2-12.5 ≥899 ≥11.3 ≥1353 ≥17 287-310 36-39 330 ≤120
N40H 1.25-1.28 12.5-12.8 ≥923 ≥11.6 ≥1353 ≥17 302-326 38-41 330 ≤120
N42H 1.28-1.32 12.8-13.2 ≥955 ≥12.0 ≥1353 ≥17 318-342 40-43 330 ≤120
N45H 1.30-1.36 13.0-13.6 ≥963 ≥12.1 ≥1353 ≥17 326-358 43-46 330 ≤120
N48H 1.37-1.43 13.7-14.3 ≥995 ≥12.5 ≥1353 ≥17 366-390 46-49 330 ≤120
N30SH 1.08-1.13 10.8-11.3 ≥810 ≥10.2 ≥1592 ≥20 223-247 28-31 340 ≤150
N33SH 1.13-1.17 11.3-11.7 ≥844 ≥10.6 ≥1592 ≥20 247-271 31-34 340 ≤150
N35SH 1.17-1.22 11.7-12.2 ≥876 ≥11.0 ≥1592 ≥20 263-287 33-36 340 ≤150
N38SH 1.22-1.25 12.2-12.5 ≥907 ≥11.4 ≥1592 ≥20 287-310 36-39 340 ≤150
N40SH 1.25-1.28 12.5-12.8 ≥939 ≥11.8 ≥1592 ≥20 302-326 38-41 340 ≤150
N42SH 1.28-1.32 12.8-13.2 ≥987 ≥12.4 ≥1592 ≥20 318-342 40-43 340 ≤150
N45SH 1.32-1.38 13.2-13.8 ≥1003 ≥12.6 ≥1592 ≥20 342-366 43-46 340 ≤150
N28UH 1.02-1.08 10.2-10.8 ≥764 ≥9.60 ≥1990 ≥25 207-231 26-29 350 ≤180
N30UH 1.08-1.13 10.8-11.3 ≥812 ≥10.2 ≥1990 ≥25 223-247 28-31 350 ≤180
N33UH 1.13-1.17 11.3-11.7 ≥852 ≥10.7 ≥1990 ≥25 247-271 31-34 350 ≤180
N35UH 1.18-1.22 11.8-12.2 ≥860 ≥10.8 ≥1990 ≥25 263-287 33-36 350 ≤180
N38UH 1.22-1.25 12.2-12.5 ≥876 ≥11.0 ≥1990 ≥25 287-310 36-39 350 ≤180
N40UH 1.25-1.28 12.5-12.8 ≥899 ≥11.3 ≥1990 ≥25 302-326 38-41 350 ≤180
N28EH 1.04-1.09 10.4-10.9 ≥780 ≥9.80 ≥2388 ≥30 207-231 26-29 380 ≤200
N30EH 1.08-1.13 10.8-11.3 ≥812 ≥10.2 ≥2388 ≥30 223-247 28-31 380 ≤200
N33EH 1.13-1.17 11.3-11.7 ≥836 ≥10.5 ≥2388 ≥30 247-271 31-34 380 ≤200
N35EH 1.17-1.22 11.7-12.2 ≥876 ≥11.0 ≥2388 ≥30 263-287 33-36 380 ≤200
N38EH 1.22-1.29 12.2-12.9 ≥915 ≥11.5 ≥2388 ≥30 287-318 36-40 380 ≤200
N30AH 1.08-1.15 10.8-11.5 ≥804 ≥10.1 ≥2786 ≥35 223-255 28-32 380 ≤230
N33AH 1.14-1.21 11.4-12.1 ≥852 ≥10.7 ≥2786 ≥35 247-279 31-35 380 ≤230
NdFeB Surface coating: Zinc plated Ni-Cu-Ni plated Silver plated Nickel plated Aurum plated Epoxy coated Phosphatsing Parylene other coating

Grade

Remanence

(Br)( KGs)

Coercive Force

(Hcb)( Koe)

Intrinsic Coercivity

(Hcj)(Koe)

Max Energy

(BH)max (MGoe)

Temperature Coefficient

(℃)

SmCo5
YX-5 4.30-5.00 ≥3.80 ≥15 4.0-5.0 ≤250
YX-6 5.00-6.00 ≥4.50 ≥15 5.0-7.0 ≤300
YX-16 7.50-8.50 ≥7.00 ≥15 14-17 ≤250
YX-18 8.50-9.20 ≥8.00 ≥18 16-19 ≤250
YX-20 8.80-9.50 ≥8.30 ≥18 18-21 ≤250
YX-22 9.00-9.80 ≥8.50 ≥15 21-23 ≤250
YX-24 9.5-10.30 ≥9.00 ≥15 22-25 ≤250
Sm2Co17
YX-24A 9.5-10.30 5.0-6.0 6.00-8.50 22-25 ≤200
YX-24B 9.5-10.30 ≥9.00 ≥15 22-25 ≤250
YX-24C 9.5-10.30 ≥9.00 ≥25 22-25 ≤300
YX-24D 9.5-10.30 ≥9.00 ≥30 22-25 ≤350
YX-26A 10.0-10.7 5.0-6.0 6.00-8.50 24-27 ≤200
YX-26B 10.0-10.7 ≥9.00 ≥15 24-27 ≤250
YX-26C 10.0-10.7 ≥9.00 ≥25 24-27 ≤300
YX-26D 10.0-10.7 ≥9.00 ≥30 24-27 ≤350
YX-28A 10.3-11.0 5.0-6.0 6.00-8.50 26-29 ≤200
YX-28B 10.3-11.0 ≥9.00 ≥15 26-29 ≤250
YX-28C 10.3-11.0 ≥9.00 ≥25 26-29 ≤300
YX-28D 10.3-11.0 ≥9.00 ≥30 26-29 ≤350
YX-30A 10.8-11.3 5.0-6.0 6.00-8.50 28-31 ≤200
YX-30B 10.8-11.3 ≥9.00 ≥15 28-31 ≤250
YX-30C 10.8-11.3 ≥9.00 ≥25 28-31 ≤300
YX-30D 10.8-11.3 ≥9.00 ≥30 28-31 ≤350
Bonded SmCo
ZYX-5 4.30-5.00 ≥3.80 8.0-12.0 4.0-5.0 ≤180
ZYX-8 5.00-6.50 ≥4.50 8.0-12.0 6.0-9.0 ≤180
Molding SmCo
ZSYX ≤6.50 ≤6.0 8.0-12.0 ≤9.0 ≤180

Industrial Rare Earth Magnets For Power Tool Assembly
